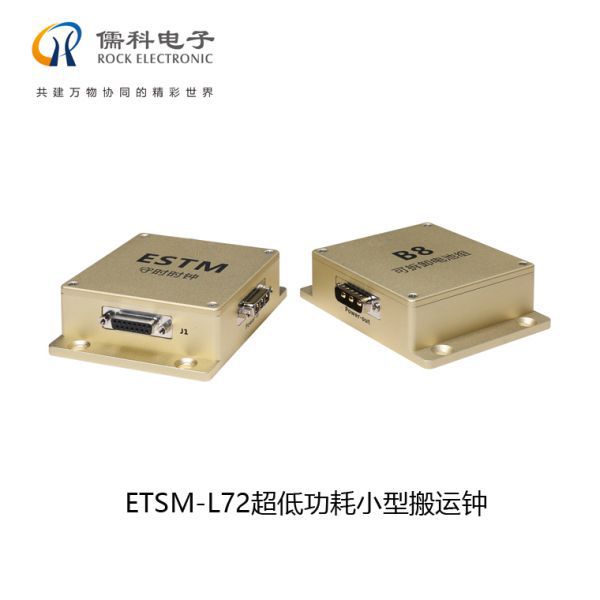

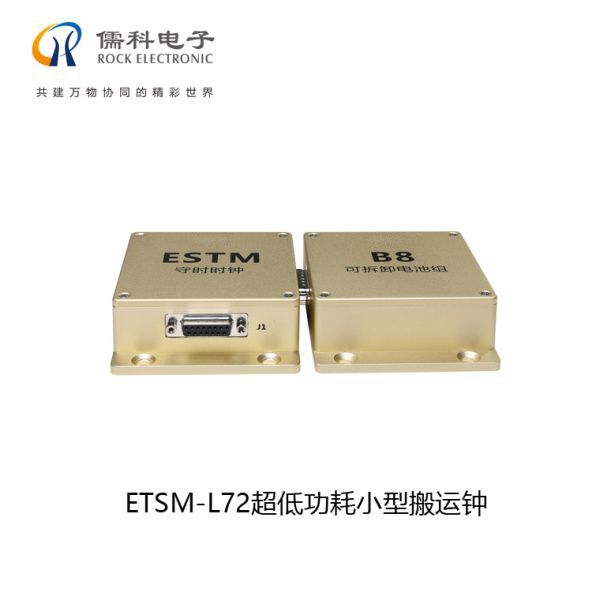

ESTM-L72 Transportable Clock
The ESTM-L72 is a high precision, low power consumption, small volume, high reliability timing device. The ESTM-L72 tracks and locks onto external 1PPS or DCLS signals to servo the internal atomic clock, and uses intelligent time optimization algorithms to ensure users can still achieve a time holdover capability better than 1us per day even under harsh conditions. Additionally, the ESTM-L72 also supports dynamic optimization of the module's holdover performance to adapt to the effects of rapid environmental changes.
From the initial design stage, the ESTM-L72 has been specifically considered for applications in wide temperature ranges, high intensity, and high impact scenarios. Both the structural design and material ion strictly comply with the corresponding standards. Its operating temperature range is broad, from -10°C to +70°C.
The main function:
- Multiple reference signals: DCLS/1PPS
- Tracking accuracy: ≤50ns
- 1PPS+NMEA output
- DCLS output
- Overall power consumption as low as 300mW
- Built-in charge/discharge management circuit
- Equipped with a low-temperature lithium-ion battery
