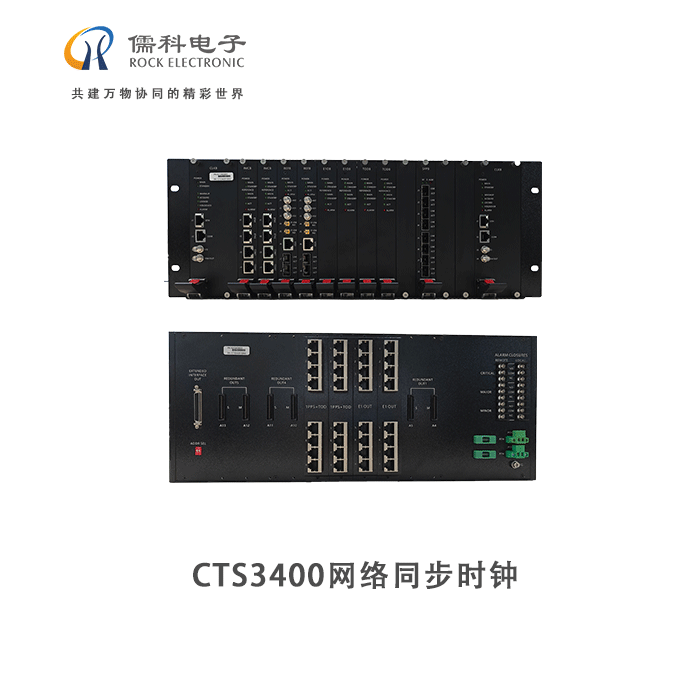

CTS3400 Network Synchronization Clock
CTS3400 network synchronization clock is the latest telecom-grade time
and frequency
synchronization equipment, which meets the
ITU-T G.8272 standards
requirements. The system
utilize modular system design, many type of
function board can be installed in the shelf, like E1/2.048MHz 4 inputs boards,
E1/2.048MHz 16 outputs boards, 4 SFP+ PTP/NTP board, 8 ports 10MHz output
board,
SFP port
can be configured to be SyncE and PTP function, each SFP+ port can be set as an NTP or PTP server
respectively. The device has strong scalability, and the powerful
industrial-grade processor can meet the demands of large-volume data requests.
The system has BEIDOU, GPS, and hybrid modes, calibrating the
local clock by receiving satellite signals or external reference sources
like SyncE, E1, PTP, 1PPS+TOD. It also supports various reference inputs and can seamless switching
between multiple reference inputs, ensuring the stability
and robustness the systems.
CTS3400 has SSH/CLI/TL1, local serial port and SNMP management interface, user can choose our SyncKeeper® (Synchronization Network Management System) to control and configure the system.
The main function:
Key Features:
- Multi-mode GNSS receiver BDS, GPS, GLONASS, GALELEO, QZSS, position hold mode improves timing accuracy
- PRTC ITU-T G.8272/ type A/ type B compliant
- EPRTC ITU-T G.8272.1 ready1
- Modular system design
- Supports various reference inputs (GNSS, 1PPS+TOD, 1PPS, E1, SyncE, 10MHz)
- Various local oscillators (rubidium clocks, OCXO)
- Diversified timing signal outputs(E1/PTP/SyncE/1PPS+TOD)
- PTP profile (ITU-T G.8265.1, ITU-T G.8275.1, ITU-T G.8275.2, etc)
- E1, SyncE input monitoring (OOF, AIS, BVP, CRC, LOS, Δf/f, MTIE, TDEV, raw phase data, SSM)
- Features SSM functionality
- Supports local serial port management and remote SSH management
- Supports network features such as IPv4, IPv6, VLAN, etc
- Supports device operation records, alarm logs, etc
- Supports remote program upgrades
- Fully redundant for service delivery protection
- Proven interoperability
- High-capacity E1 and T1 ports
- High-capacity SFP+ PTP/NTP ports
- Multiple 1pps and 10MHz outputs
- Primary Reference Source (PRS)
- SSU, Building Integrated Timing Supply (BITS), Stand Alone Synchronization Equipment (SASE), Timing Signal Generator (TSG)
- SDH/SONET and GPON networks
- Telecommunications, power utility, government, and other private networks
Datasheet and more details, please contact us directly:
Attn: Ms. Ho Ching Yi
Tel: 852-24429390
E-mail: sales@rockelec.com
